HUSQVARNA TC 125 [2016-2022] - Complete Top End Kit - Cast Pistons

VERTEX Top End Kit with cast pistons for Husqvarna TC 125

The VERTEX complete kit for the upper engine area supports the engine overhaul of the HUSQVARNA TC 125. It bundles the components relevant for the replacement and can therefore reduce the workload when replacing pistons and seals in the upper engine area.

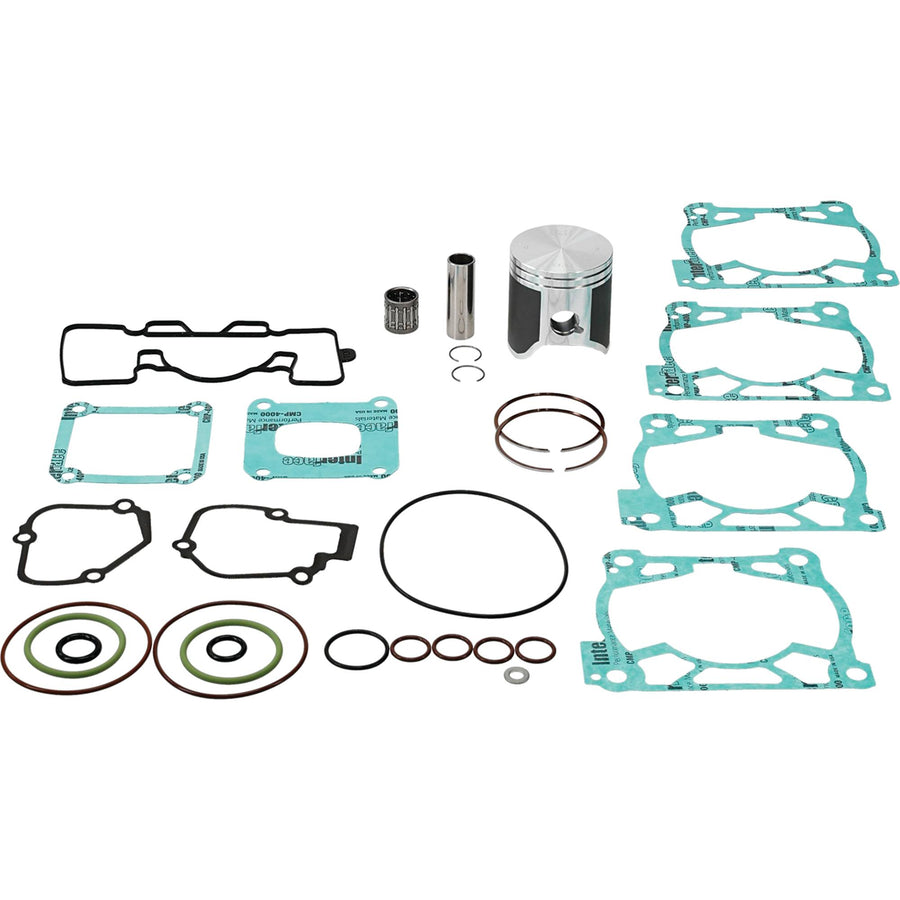

Function and scope of delivery

The kit is designed for two-stroke applications and contains the components for replacing the piston and associated components:

• Piston made of cast aluminum
• Piston rings
• Piston pin
• safety clips
• Top end gasket kit
• Needle bearing for the piston pin

Technical data

• Piston Type: Cast
• Piston compression: standard
• Diameter Ø: 53.96 mm
• Letter oversize: C
• Oversize: +0.02
• Bore diameter: 54.00 mm
• Number of piston rings: 2
• Stroke: 2T

Vehicle assignment

The top end kit is assigned to the HUSQVARNA TC 125 built between 2016 and 2022. The combination of standard piston compression, cast aluminum piston and the specified dimensions is used for targeted selection for this vehicle.

Factual note

Before ordering, please compare the vehicle assignment and the technical dimensions with the existing application. The kit is intended for work on the upper engine area.
