KTM 125 SX [2023-2025] - Complete Top End Kit - Cast Pistons

✔️ New part
ID: 15712032293190

€209,00 EUR

DELIVERY
Ready to ship | in 2-6 business days
Delivery with DHL in 6-12 business days.
PRODUCT DESCRIPTION

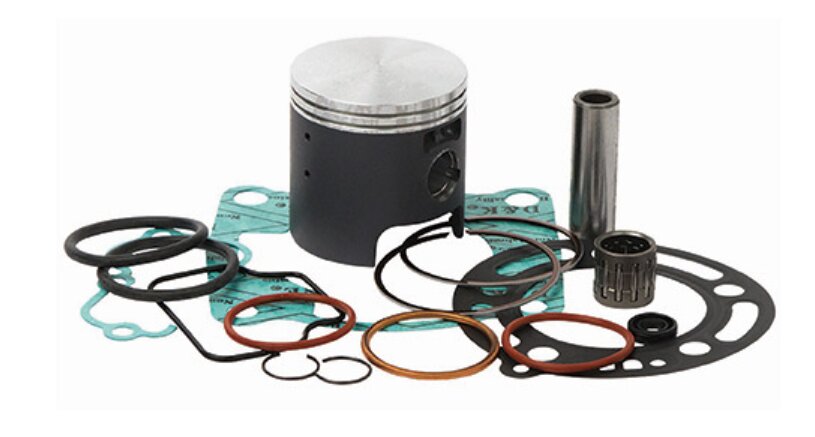

VERTEX complete top end kit with cast pistons for KTM 125 SX

The VERTEX Top End Kit bundles the components for overhauling the upper engine area of the KTM 125 SX. The cast aluminum piston comes with piston rings, piston pins, locking clips and top-end gasket kit. For this two-stroke application, the piston pin needle bearing is also included in the scope of delivery.

Function and scope of delivery

  • Cast aluminum piston
  • 2 piston rings
  • Piston pin
  • safety clips
  • Top end gasket kit
  • Needle bearings for two-stroke applications

The coordinated kit makes it easier to replace the components mentioned in one operation and supports a time-saving compilation of the required parts for the upper engine area.

Technical data

  • Material: aluminum
  • Piston Type: Cast
  • Piston compression: standard
  • Diameter Ø: 53.97 mm
  • Letter oversize: D
  • Oversize: +0.03
  • Bore diameter: 54.00 mm
  • Piston rings: 2
  • Version: 2T

Vehicle assignment

The top end kit is assigned to the KTM 125 SX built between 2023 and 2025. Before ordering, please compare the technical data, in particular diameter, bore diameter and oversize, with the intended motor.

Description

VERTEX complete top end kit with cast pistons for KTM 125 SX

The VERTEX Top End Kit bundles the components for overhauling the upper engine area of the KTM 125 SX. The cast aluminum piston comes with piston rings, piston pins, locking clips and top-end gasket kit. For this two-stroke application, the piston pin needle bearing is also included in the scope of delivery.

Function and scope of delivery

  • Cast aluminum piston
  • 2 piston rings
  • Piston pin
  • safety clips
  • Top end gasket kit
  • Needle bearings for two-stroke applications

The coordinated kit makes it easier to replace the components mentioned in one operation and supports a time-saving compilation of the required parts for the upper engine area.

Technical data

  • Material: aluminum
  • Piston Type: Cast
  • Piston compression: standard
  • Diameter Ø: 53.97 mm
  • Letter oversize: D
  • Oversize: +0.03
  • Bore diameter: 54.00 mm
  • Piston rings: 2
  • Version: 2T

Vehicle assignment

The top end kit is assigned to the KTM 125 SX built between 2023 and 2025. Before ordering, please compare the technical data, in particular diameter, bore diameter and oversize, with the intended motor.
